Thin-Gauge Cut-to-Length Line

Name: Thin-Gauge Cut-to-Length Line
Brand: Rising Kirin

Heavy-coil slitting line for making wide and narrow strip coils, Cut hot-rolled, pickled, stainless or aluminium coil up to 16 mm lengthwise and rewind it into finished strip coils.

Talk to an engineer →

Example setup · Final machine is matched to your material and product

How we choose the setup

Choose the cutting method that fits your daily orders.

We look at the material, sheet length, flatness and required output. Then we choose stop-cut, moving shear or flying shear for the most practical result.

Cold-rolled steelGalvanized steelAluminiumStainless steelCopper

Six-high levelingStop / moving / flying shearUp to 21 leveling rollsAutomatic sheet handling

How the line works

01Coil loading

02Decoiling

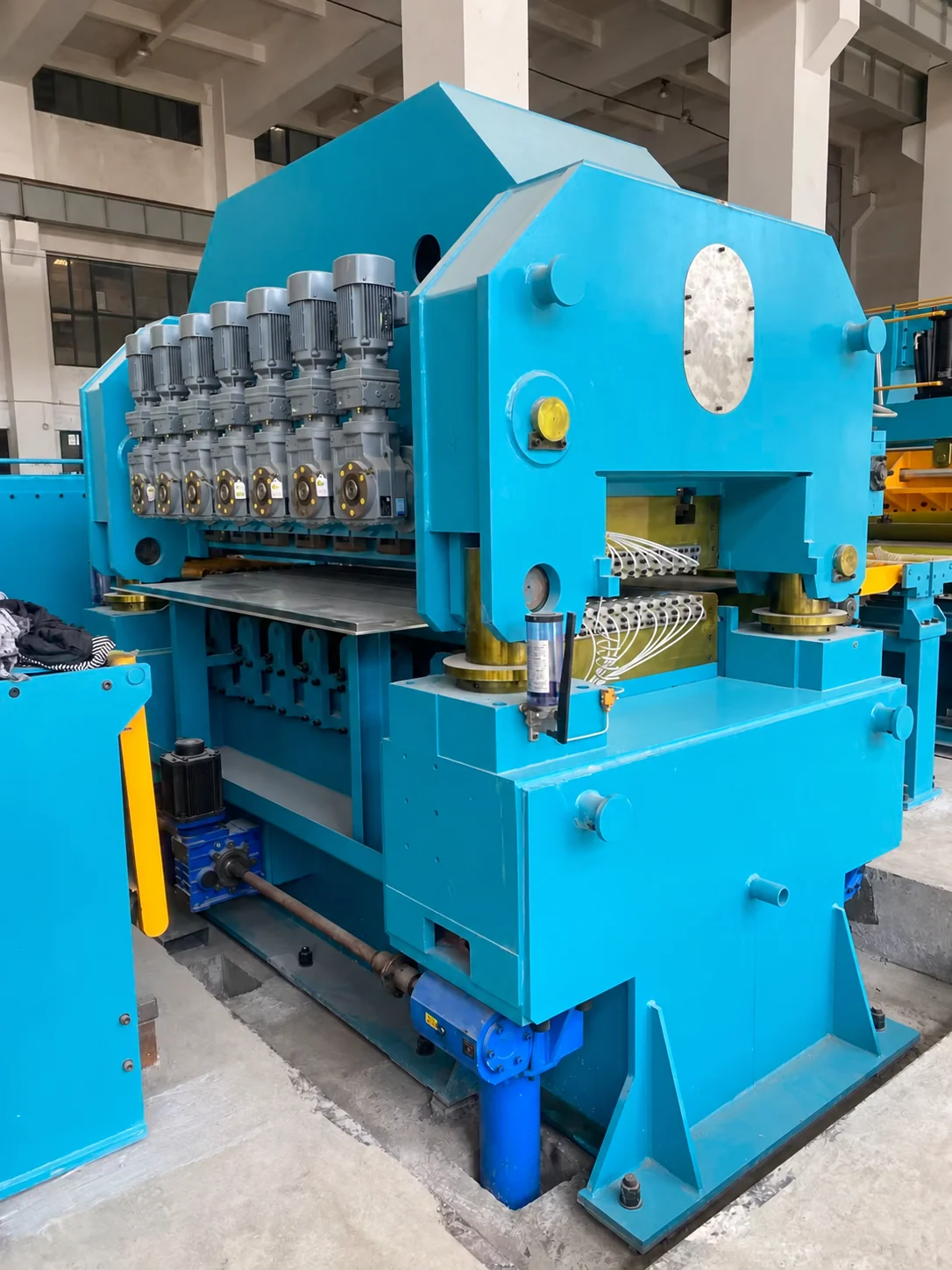

03Precision leveling

04Measuring

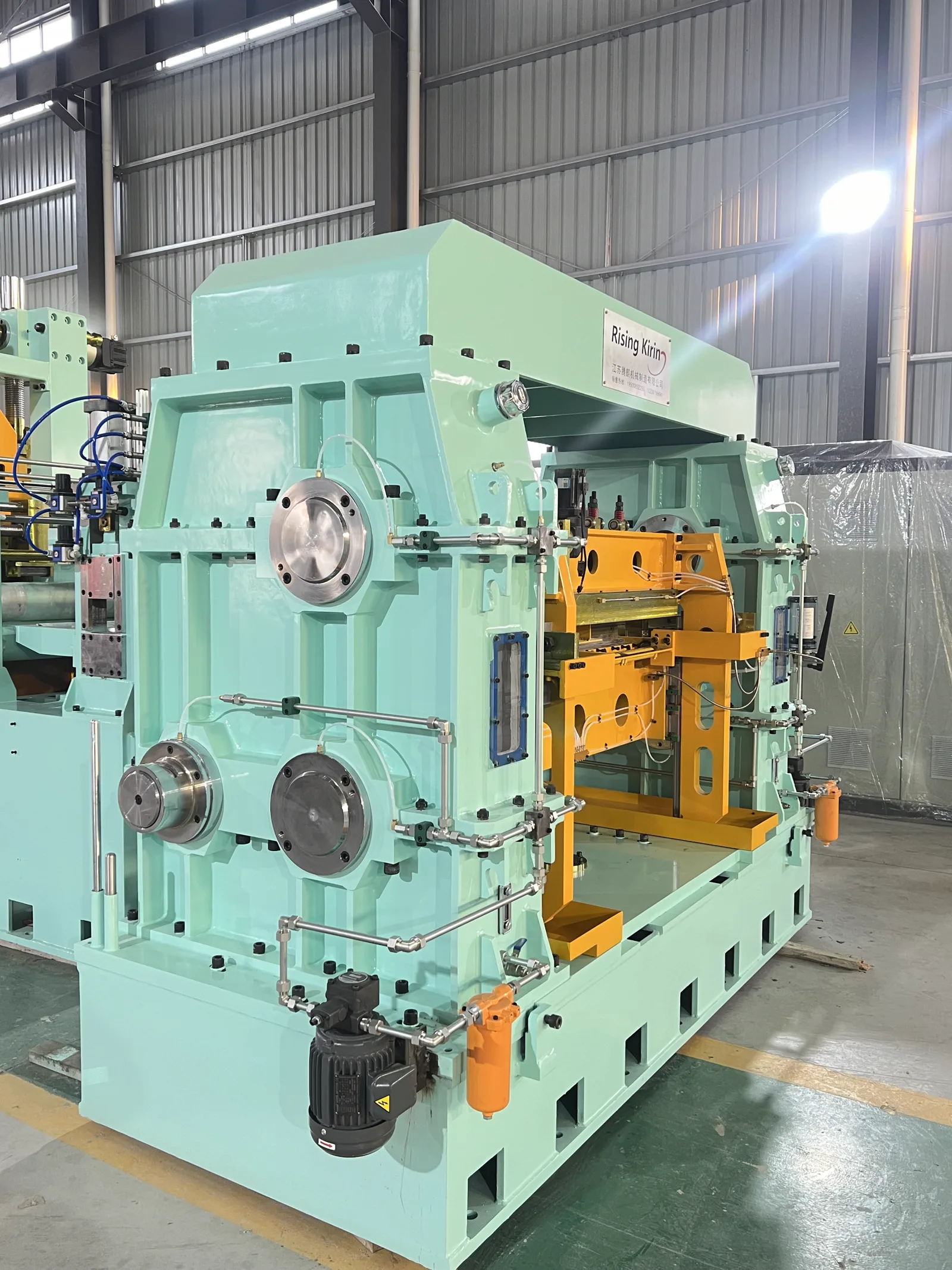

05Flying shear

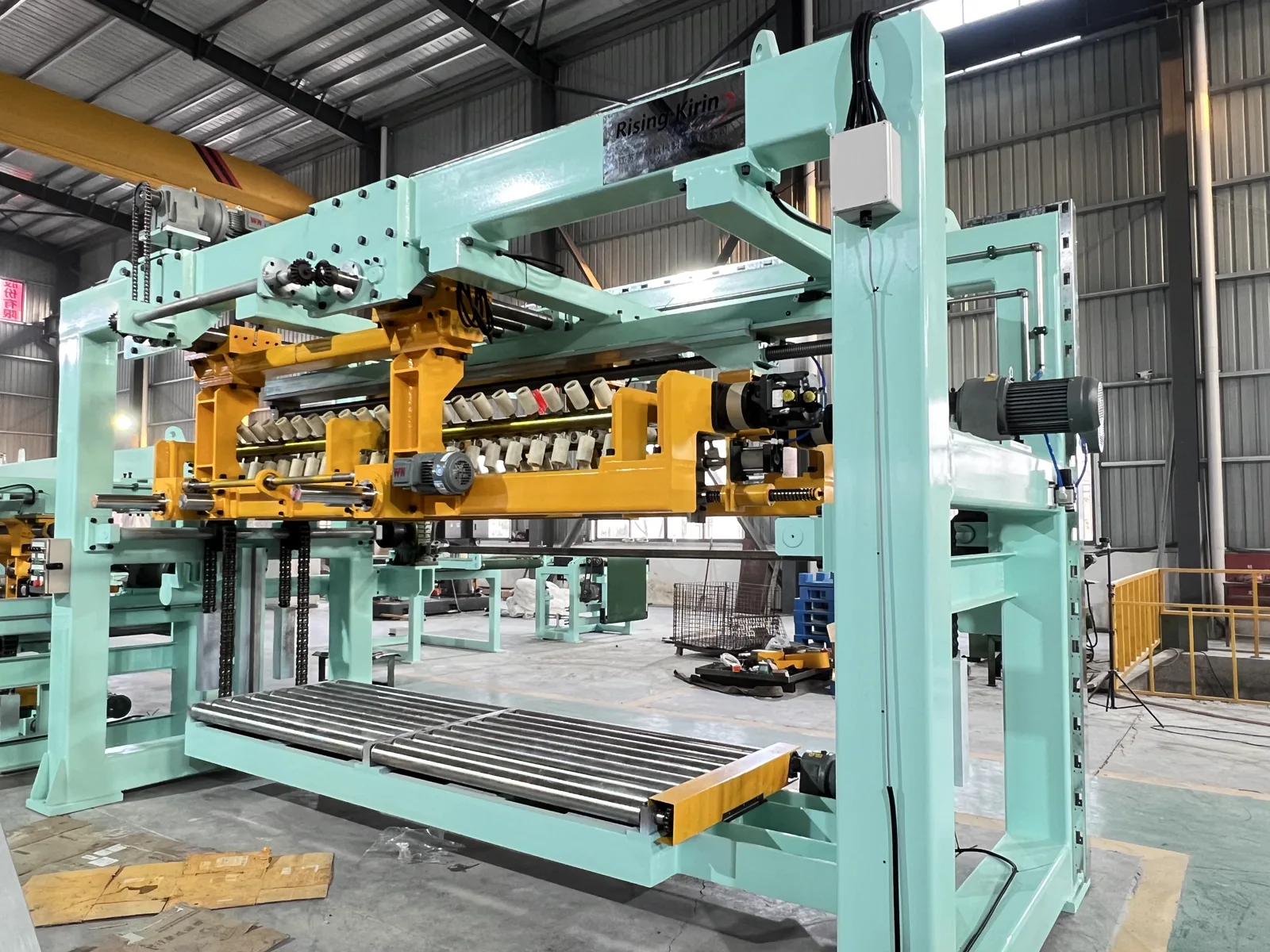

06Sheet stacking

Real workshop media

See the machines and main parts.

These photos and videos show Rising Kirin equipment and workshop work. Your final line may look different because it will be built for your requirements.

Edited factory footage · Shown as an equipment example

Choose a practical setup

Three configurations buyers commonly compare.

Start with your usual coil, finished size and daily output. These examples show what changes between a flexible line, a higher-output line and a wider or heavier-duty line.

013/850 model range

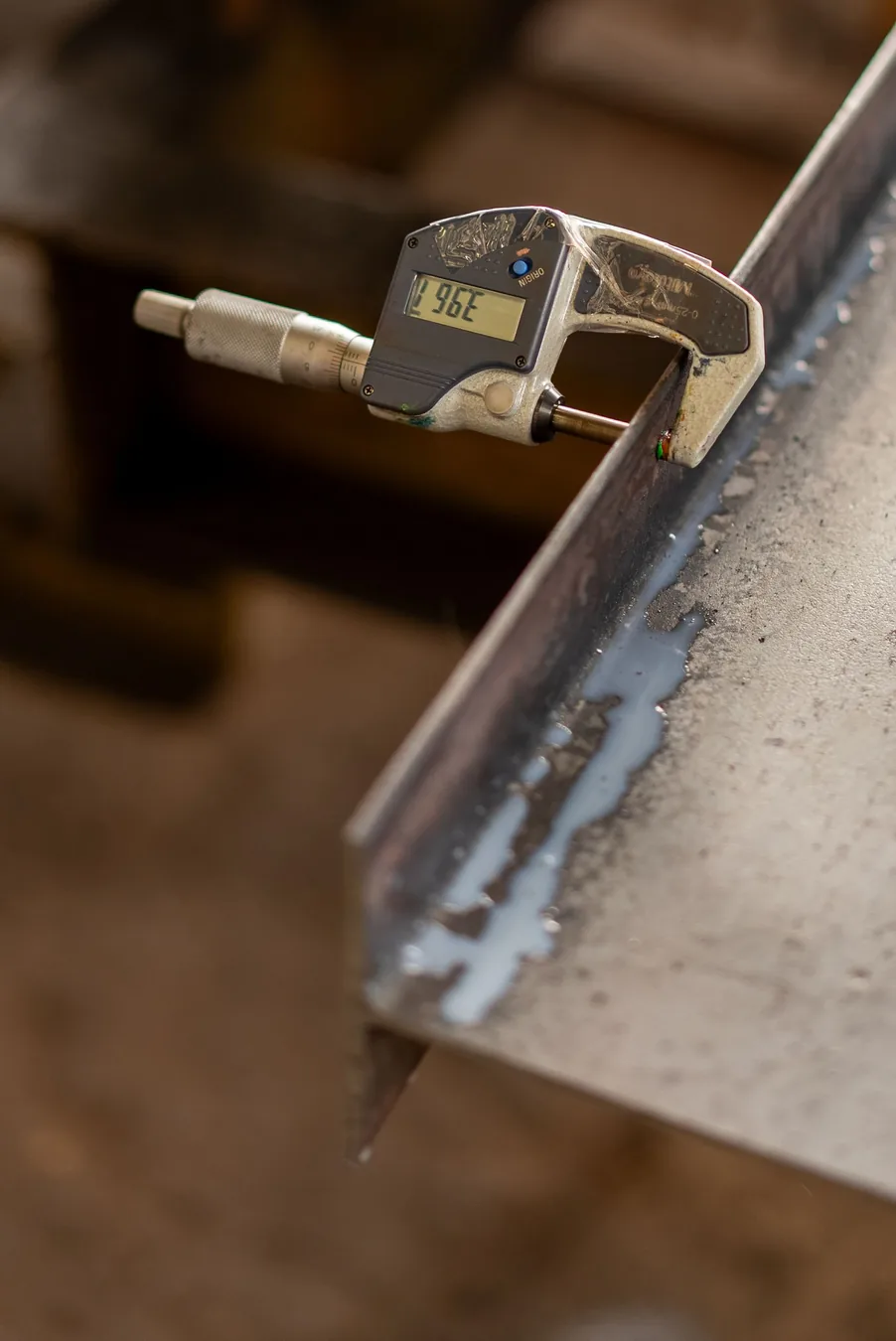

Compact sheet line

For narrower coil and flexible cut-length production.

023/1650 model range

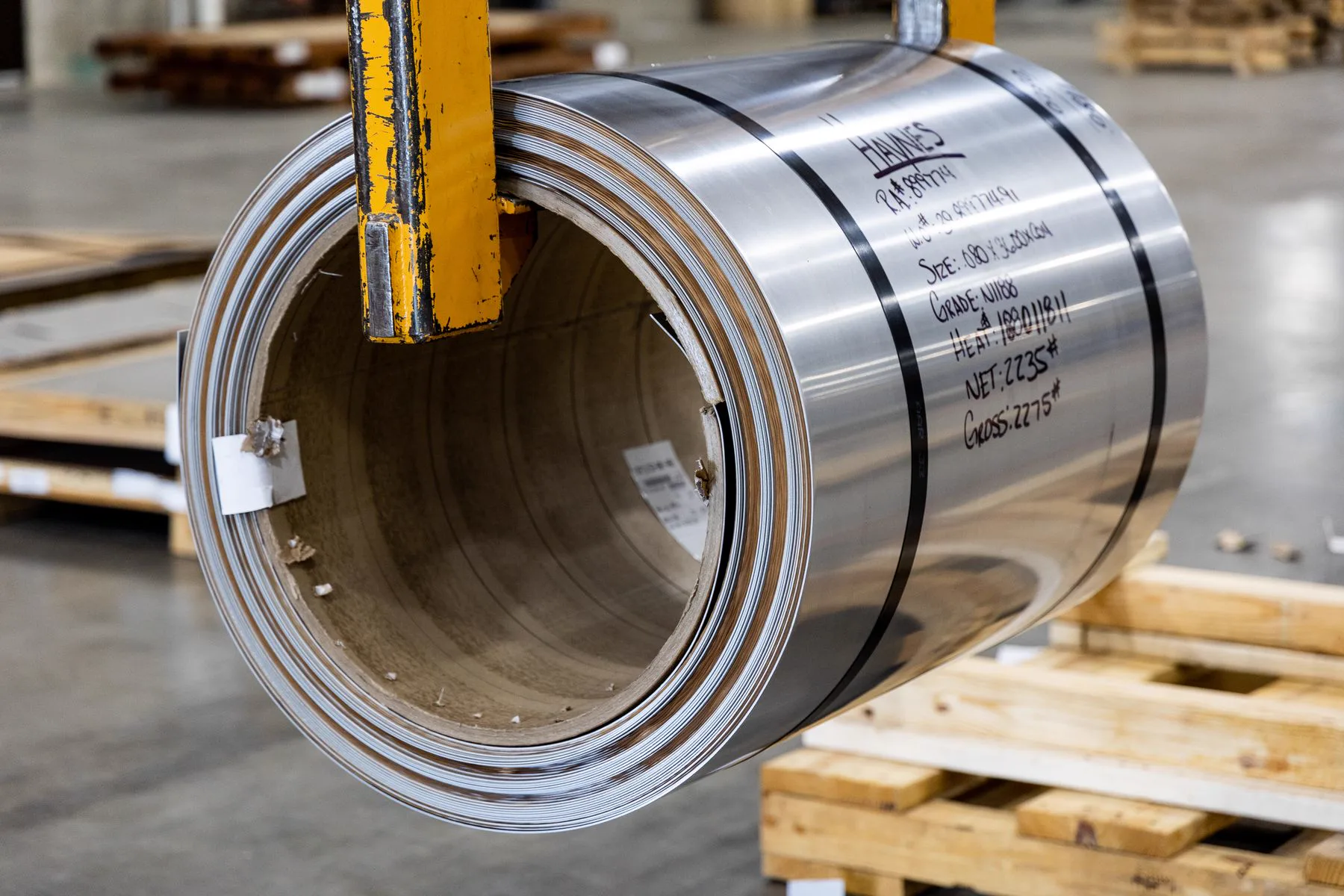

General-purpose sheet line

For mixed cold-rolled, coated and non-ferrous applications.

033/1850 model range

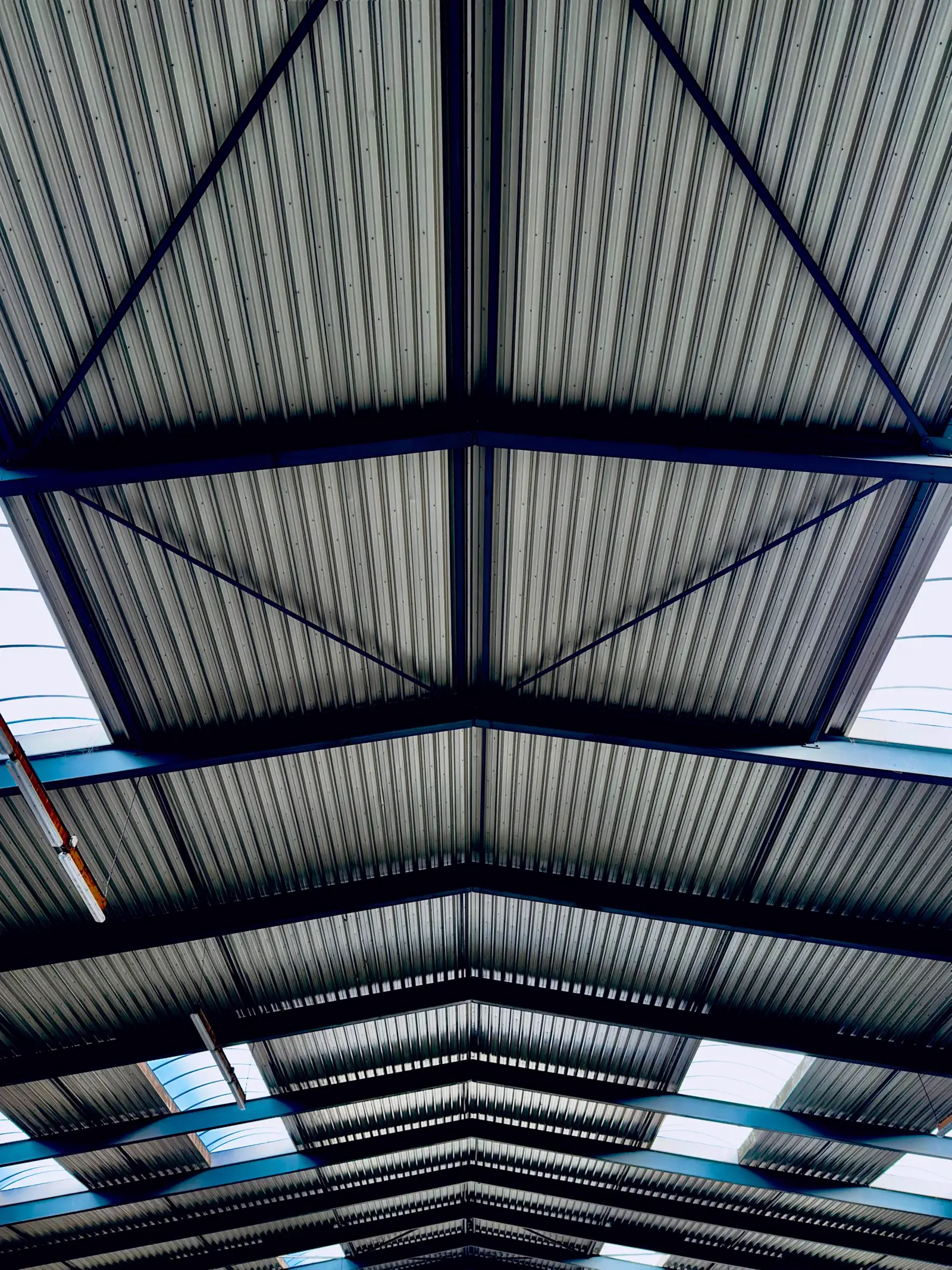

Wide high-strength line

For wider coil where material strength and leveling demand drive the configuration.

Model comparison

Compare the available sizes and speeds.

Model data is based on the current technical parameter sheet. Final speed, cutting mode and line configuration are confirmed against the material and finished-sheet specification.

Specification	3/850	3/1250	3/1650	3/1850
Thickness	0.3–3 mm	0.3–3 mm	0.3–3 mm	0.3–3 mm
Working width	100–850 mm	300–1,250 mm	300–1,650 mm	500–1,850 mm
Maximum coil weight	10 t	18 t	25 t	25 t
Maximum line speed	80 m/min	80 m/min	80 m/min	80 m/min
Cutting modes	Stop / moving / flying	Stop / moving / flying	Stop / moving / flying	Stop / moving / flying
Leveler type	Six-high	Six-high	Six-high	Six-high
Leveling roll count	17	21	21	21
Maximum tensile strength	780 MPa	980 MPa	1,180 MPa	1,180 MPa

Before delivery

Confirm the machine, layout, testing and support.

We agree what is included, how the line fits the factory, what will be tested and who handles installation and start-up.

See the service steps →
