013.5/1250 model range
Flexible strip production
For varied strip patterns and frequent production changes.
Thin coil to narrow strips
Thin-Gauge Coil Slitting Line
High-speed slitting with controlled guiding, tension and recoiling.
Talk to an engineer →
Example setup · Final machine is matched to your material and product
How we choose the setup
Keep strip width, edges and winding stable at speed.
Your strip widths, edge-quality target and finished-coil size decide the knives, scrap handling, tension unit and recoiler setup.
Up to 240 m/minUp to 50 stripsStable tensioningControlled recoiling

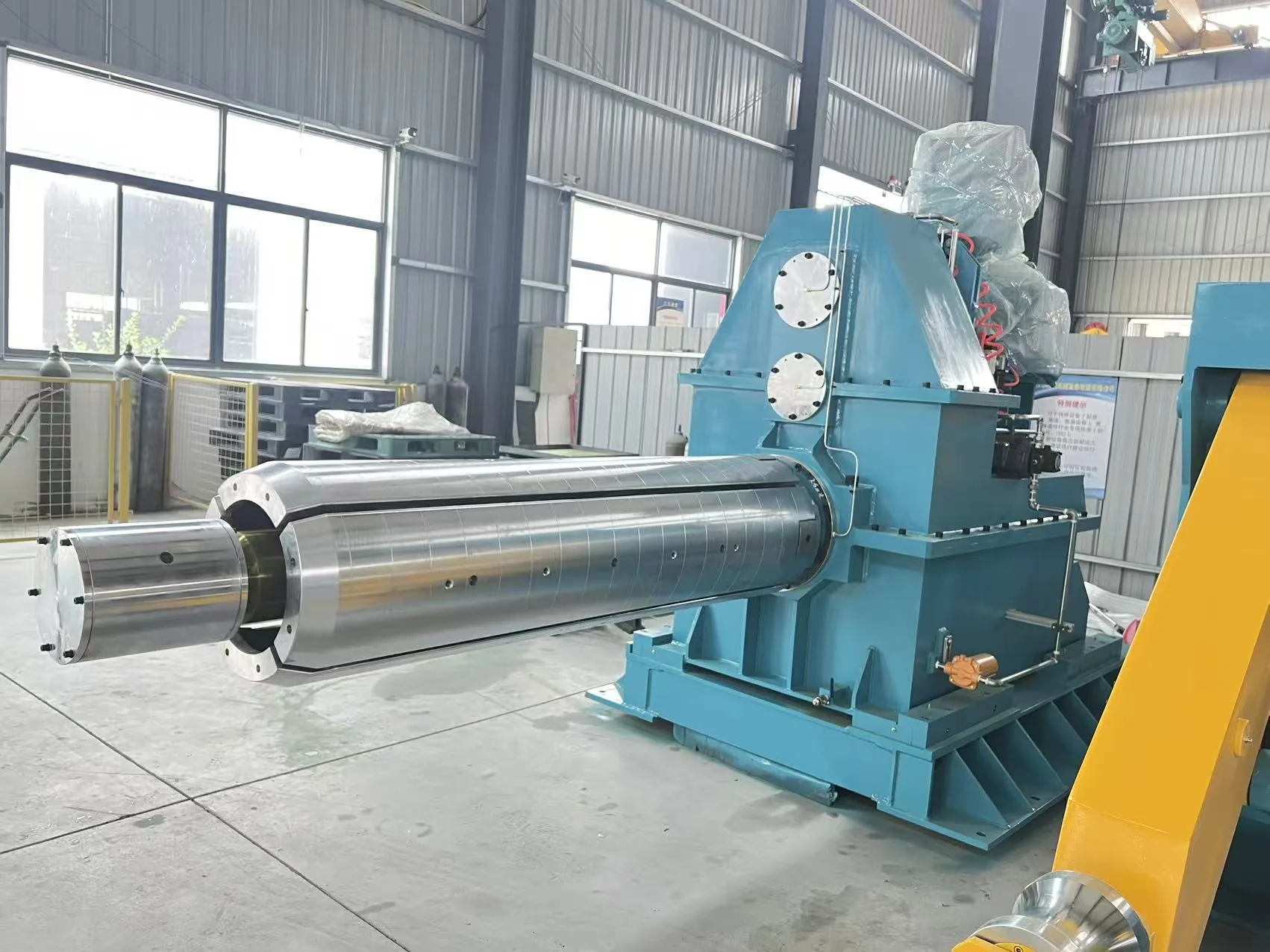

01Coil loading
02Decoiling
03Entry guiding

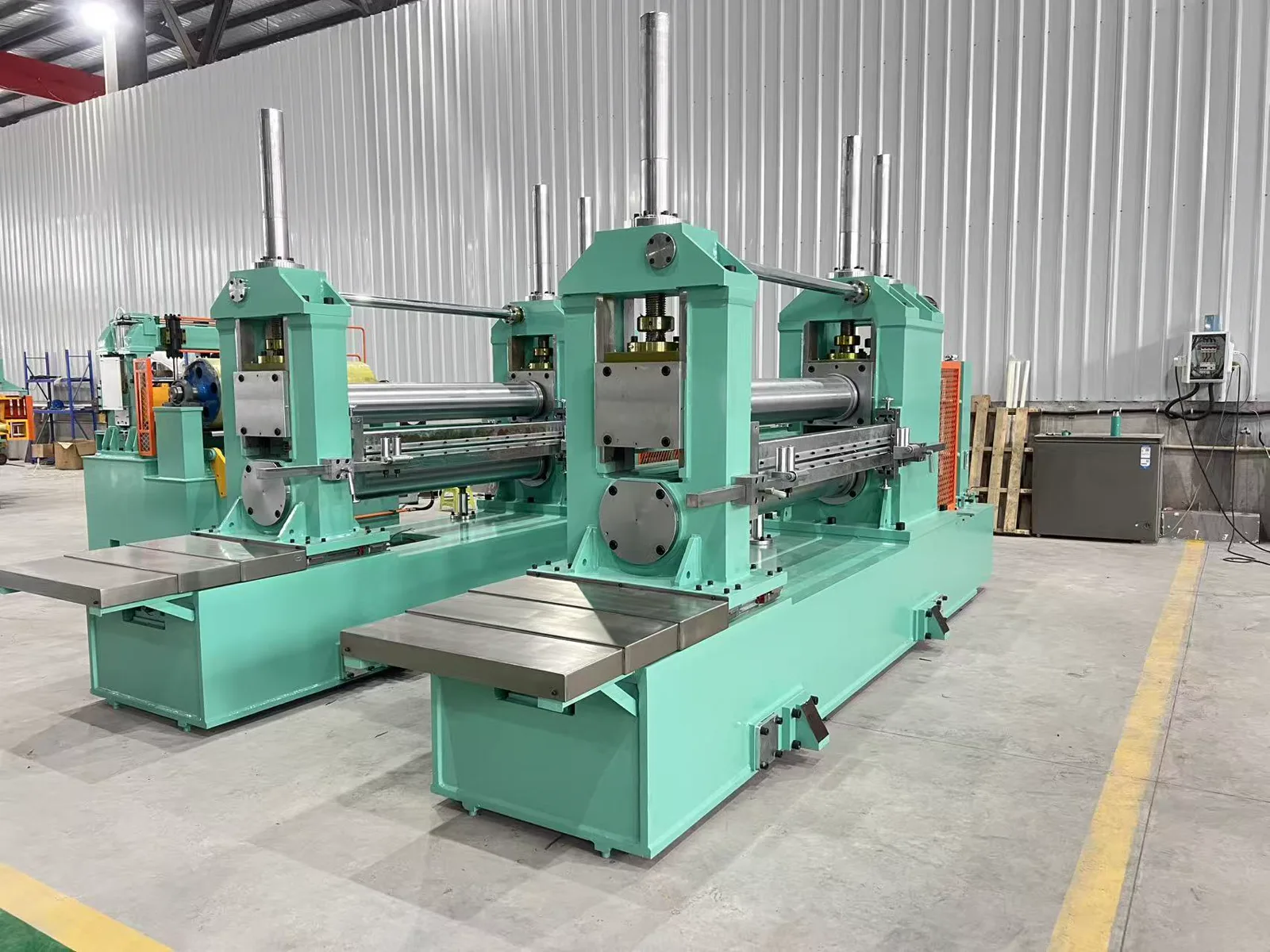

04Slitting
05Scrap handling

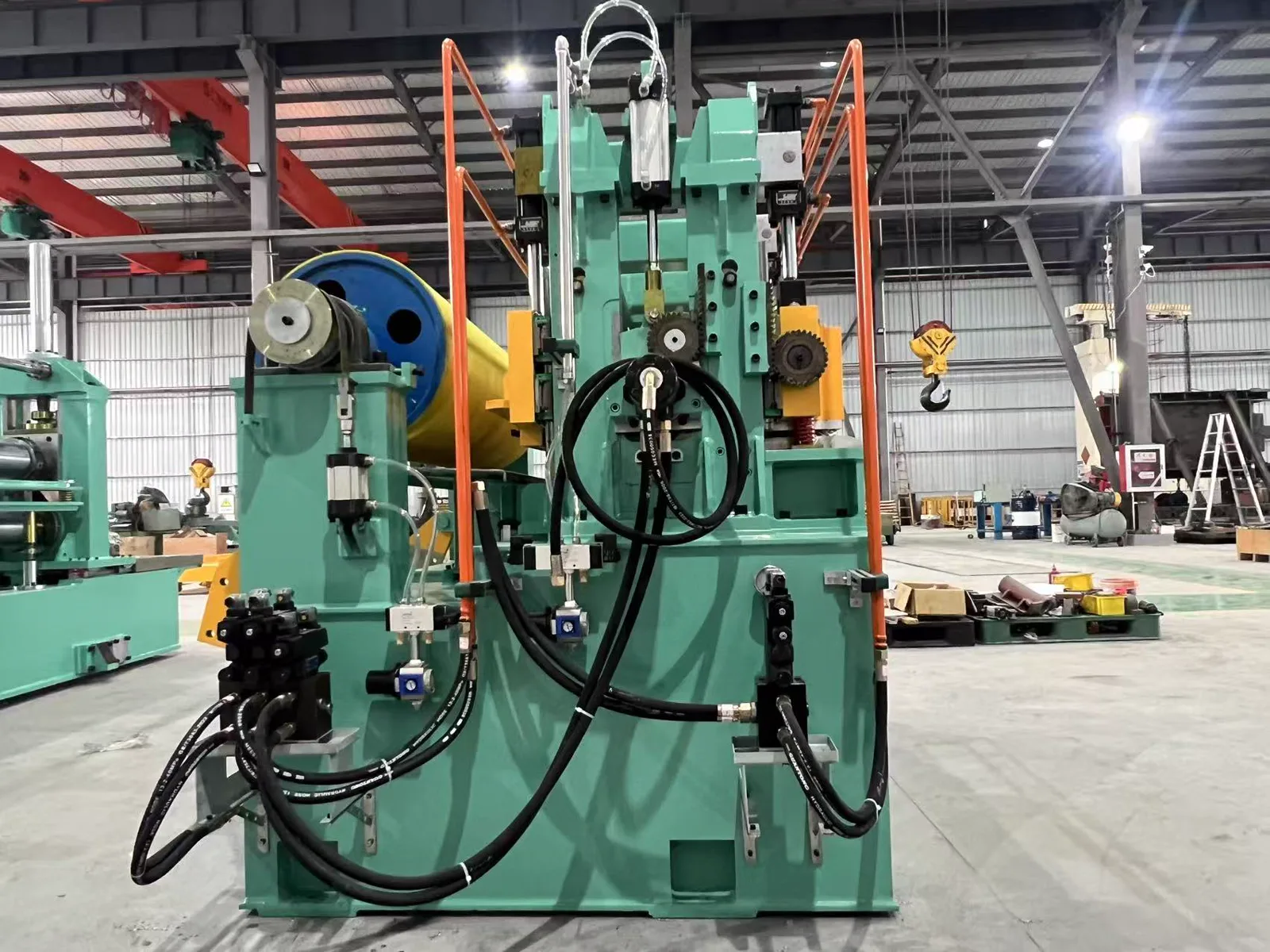

06Tensioning
07Recoiling
Real workshop media
See the machines and main parts.
These photos and videos show Rising Kirin equipment and workshop work. Your final line may look different because it will be built for your requirements.
Choose a practical setup
Three configurations buyers commonly compare.
Start with your usual coil, finished size and daily output. These examples show what changes between a flexible line, a higher-output line and a wider or heavier-duty line.
013.5/1250 model range
023.5/1650 model range
Higher-output strip production
For longer runs where stable strip tension and tight, even recoiling matter more than frequent setup changes.
033.5/1850 model range
Wide multi-strip production
For applications requiring wider input coil and a larger slit count.
Model comparison
Compare the available sizes and speeds.
Maximum slit count depends on strip width, material properties, tooling and recoiling requirements. The final strip pattern is reviewed for each application.
| Specification | 3.5/1250 | 3.5/1650 | 3.5/1850 |
|---|---|---|---|
| Thickness | 0.2–3.5 mm | 0.2–3.5 mm | 0.2–3.5 mm |
| Working width | 200–1,250 mm | 200–1,650 mm | 200–1,850 mm |
| Maximum coil weight | 18 t | 25 t | 25 t |
| Maximum line speed | 240 m/min | 240 m/min | 240 m/min |
| Maximum slit count | 35 strips | 40 strips | 50 strips |
Before delivery
Confirm the machine, layout, testing and support.
We agree what is included, how the line fits the factory, what will be tested and who handles installation and start-up.
See the service steps →
