Heavy-Gauge Cut-to-Length Line

Name: Heavy-Gauge Cut-to-Length Line
Brand: Rising Kirin

Heavy-duty decoiling, leveling, shearing and stacking for hot-rolled material.

Talk to an engineer →

Example setup · Final machine is matched to your material and product

How we choose the setup

Built to handle thick coil and heavy finished sheets.

Material strength, thickness, width, coil weight and sheet size decide the leveler, drive power, shear and stacking system.

Pickled steelHot-rolled steelAluminiumStainless steel

Up to 35 t coilsFour-high levelingUp to 2,400 mm widthHeavy sheet handling

How the line works

01Coil loading

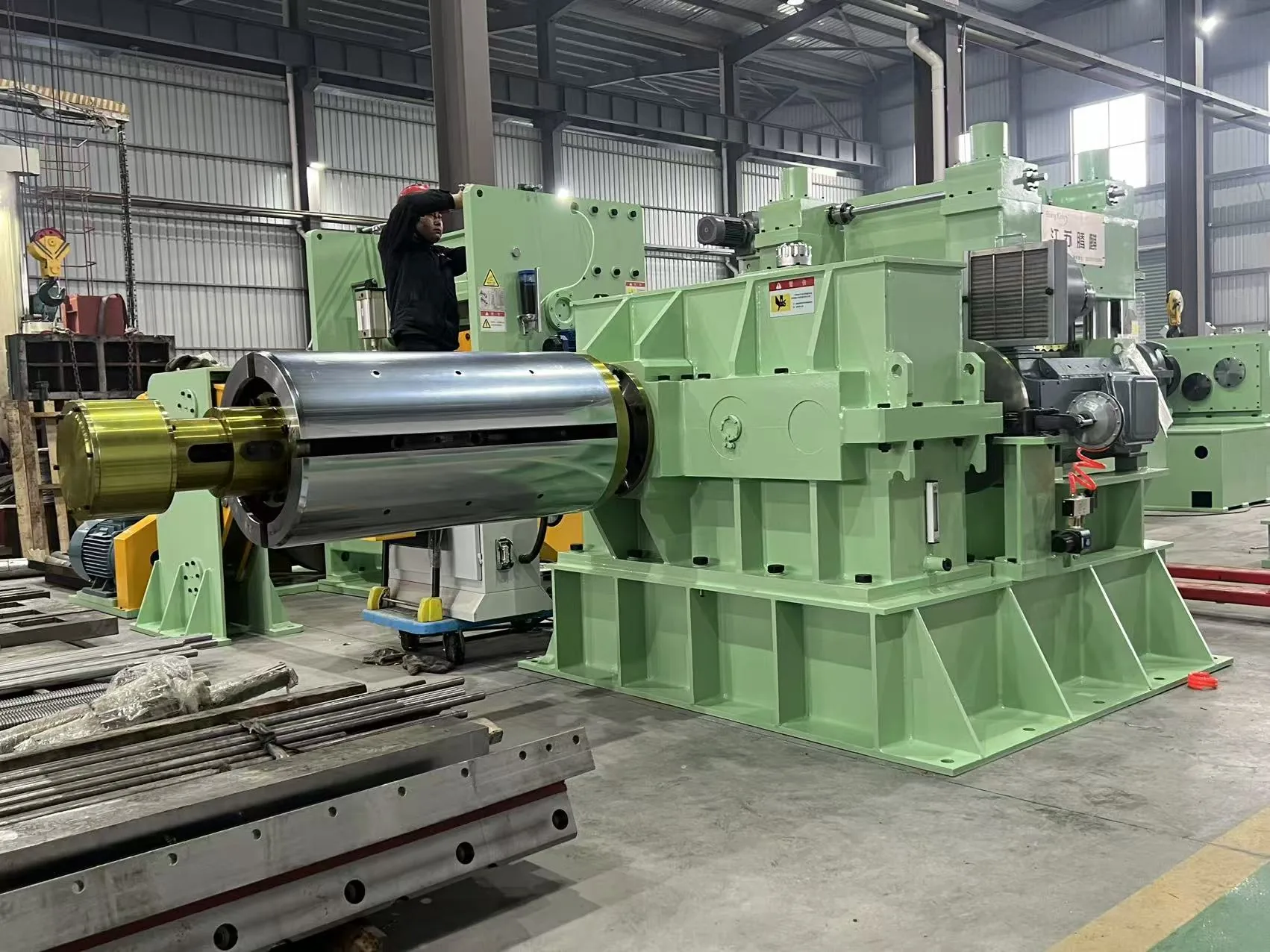

02Decoiling

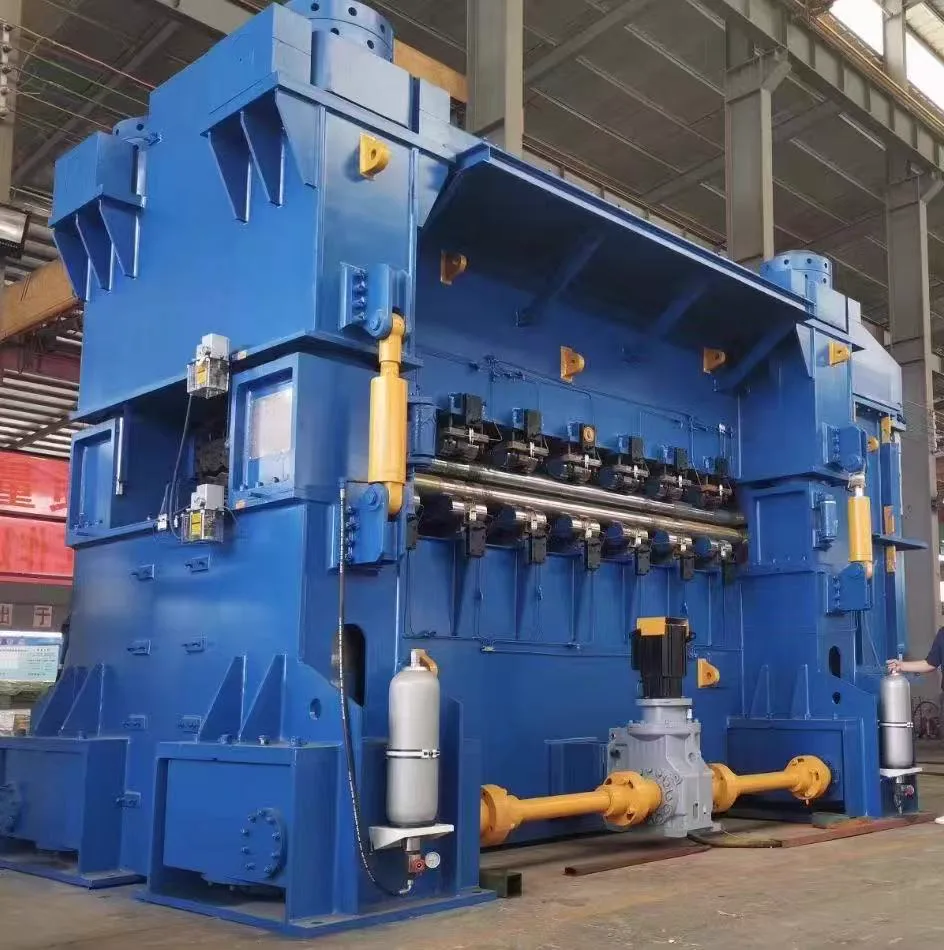

03Four-high leveling

04Measuring

05Flying shear

06Heavy sheet stacking

Real workshop media

See the machines and main parts.

These photos and videos show Rising Kirin equipment and workshop work. Your final line may look different because it will be built for your requirements.

Edited factory footage · Shown as an equipment example

Choose a practical setup

Three configurations buyers commonly compare.

Start with your usual coil, finished size and daily output. These examples show what changes between a flexible line, a higher-output line and a wider or heavier-duty line.

011–6 / 2–8 model range

Medium-heavy sheet production

For robust leveling and cutting of general hot-rolled coil.

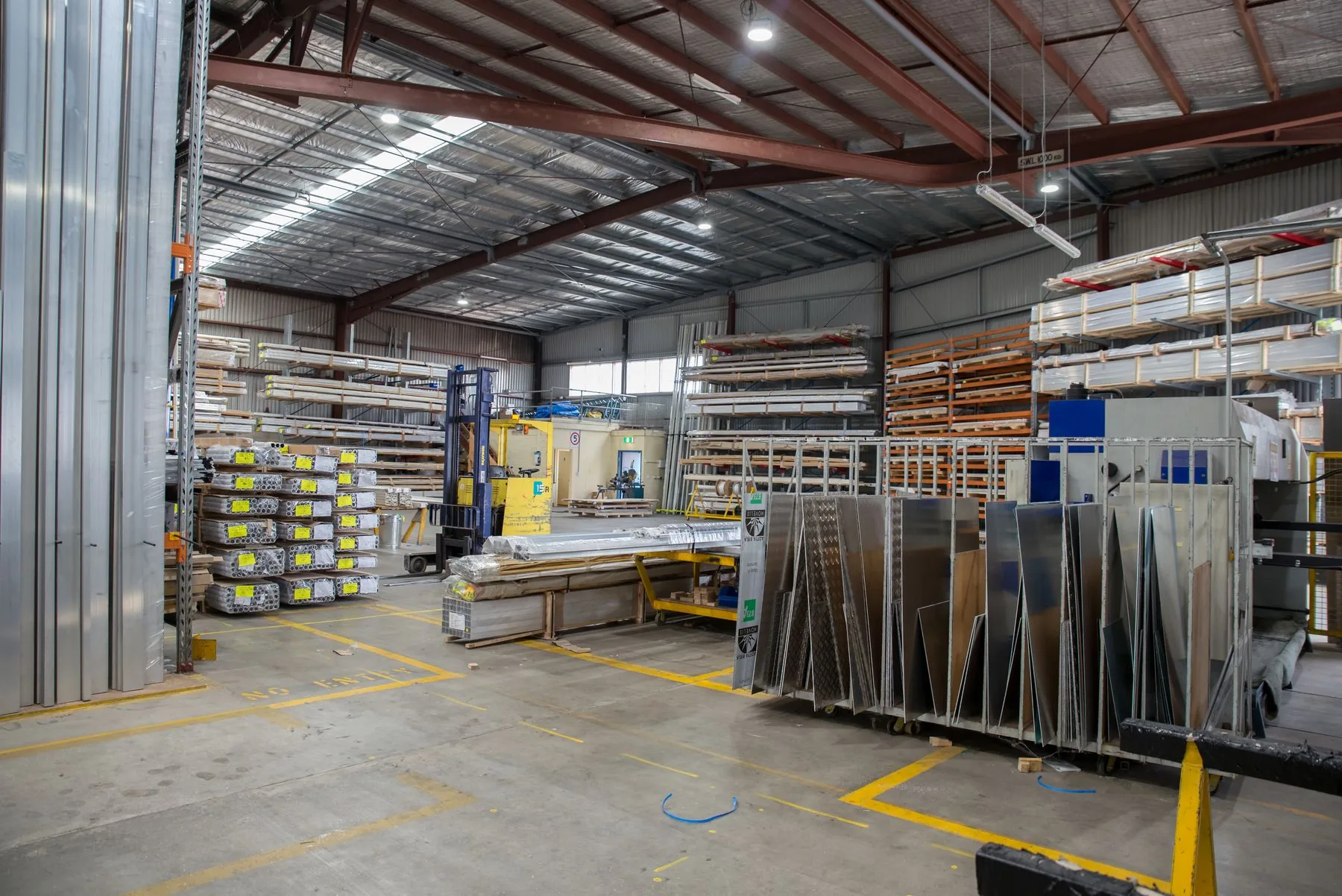

026–12 / 8–16 model range

Structural plate preparation

For heavier sheet feeding, leveling and automatic stacking.

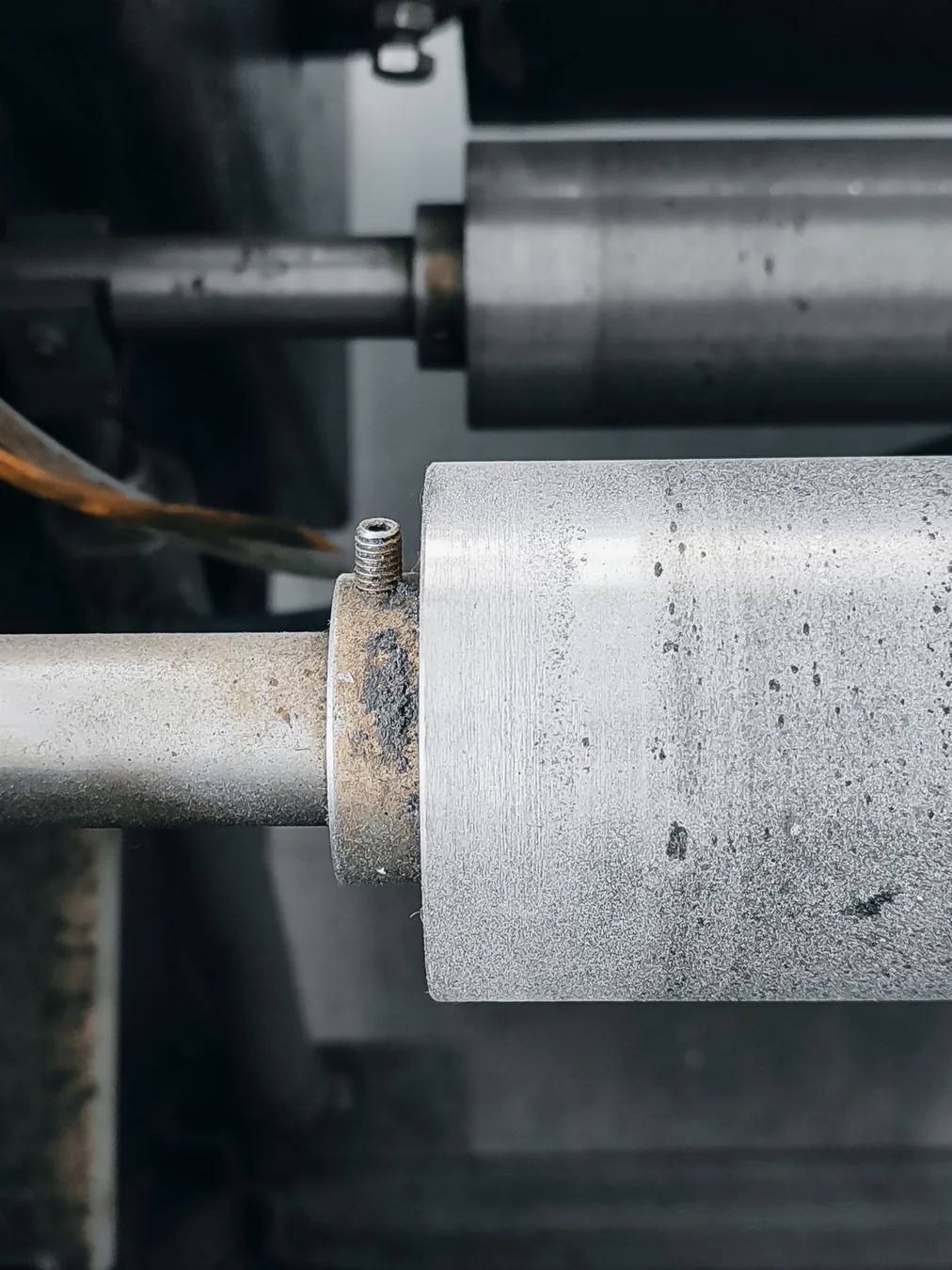

0312–20 / 16–25 model range

Maximum-gauge configuration

For demanding coil where drive, leveler and shear sizing are decisive.

Model comparison

Compare the available sizes and speeds.

The model range is selected from maximum material thickness and strength. Final line speed and leveling performance are confirmed using the actual production mix.

Specification	1–6	2–8	6–12	8–16	12–20	16–25
Maximum thickness	6 mm	8 mm	12 mm	16 mm	20 mm	25 mm
Working width	1,000–2,000 mm	1,000–2,000 mm	1,000–2,400 mm	1,000–2,400 mm	1,000–2,400 mm	1,000–2,400 mm
Maximum coil weight	35 t	35 t	35 t	35 t	35 t	35 t
Maximum line speed	50 m/min	50 m/min	35 m/min	20 m/min	20 m/min	20 m/min
Leveler type	Four-high	Four-high	Four-high	Four-high	Four-high	Four-high
Precision leveling rolls	17	17	15	15	15	15

Before delivery

Confirm the machine, layout, testing and support.

We agree what is included, how the line fits the factory, what will be tested and who handles installation and start-up.

See the service steps →
